High Quality Automatic Construction Building Steel Wire Welding Machine
Welding method of High Quality Automatic Construction Building Steel Wire Welding Machine:
1 The equipment adopts high-pressure cylinder to strengthen the welding point.
2. The welding electrode head is made of high quality pick chrome copper material, and adopts water circulating cooling method, the whole is more wear resistance, better conductivity, longer service life, reduce user production cost, which is the best material for resistance welding electrode.
3. Welded gas storage device is equipped with air filter device and oil pollution filter device, which can greatly improve the service life of the pneumatic elements of the equipment.

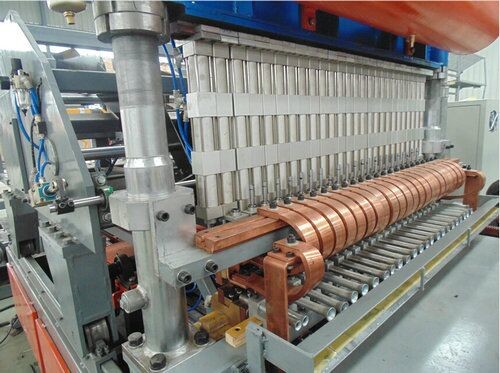

4. The welding transformer with enhanced design is overall water circulating cooling, which can meet the requirements of high-speed continuous welding and ensure excellent welding effect of long-without heating operation.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 6+6mm | |
| 2 | Long wire diameter | ¢3-6mm | |
| 3 | Cross wire diameter | ¢3-6mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥50mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤3000mm | Adjustable |
| 9 | Width range of wire mesh | ≤1600mm | Adjustable |
| 10 | Number of welding spot | 20PCS | |
| 11 | Working speed max. | 40-60times/min | |
Latitude line automatic feeding mechanism (flying shear) - -the whole consists of material bearing frame, wiring mechanism, feeding mechanism, straightening mechanism, flying shear mechanism and feeding mechanism;
Under program control, the servo motor drive the disc into the straightening drum, after the straightening drum rapid rotation to make the wire straightening and automatically fly cut off, through the collection device slipped to the feeding mechanism, transport to the feeding area, finally the wire wheel, between the electrode, welding main beam pressure welding, a row of horizontal wire welding, longitudinal wire step into a grid, while falling a horizontal wire, welding, many times, a finished mesh piece completed;
Steel wire feed is smooth, fast, and accurate.
